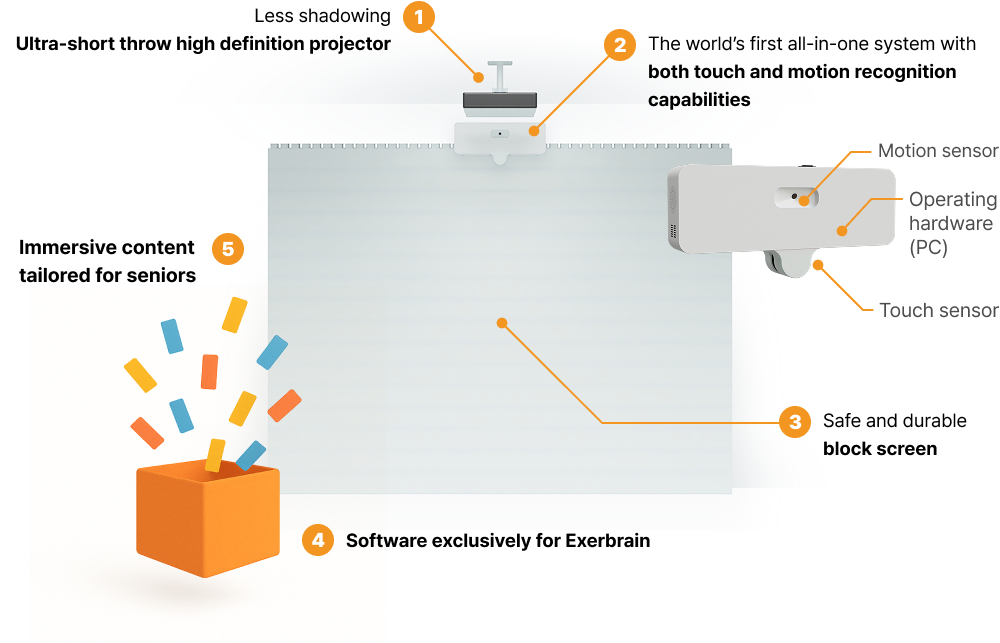

Product components

item
detail
Product NameEXERBRAIN
Screen size125~150 inches (2,800 x 1,540mm ~ 3,360 x 1,820mm)
EntityProduct Size580 x 275 x 100mm(W*H*D)
Weight4kg
Power voltageAC 100-240V ~ 50/60Hz
Power consumption~250W
Betwork802.11ax(Wi-Fi 6E) / Bluetooth 5.3
ConnectorHDMI / USB
ProjectorOutput Resolution1,920 x 1,080 (FHD)
Maximum injection rate60Hz
Contrast/Brightness3,000:1 contrast ratio / 5,000 lumens
Power voltageAC 100-240V ~ 50/60Hz
Power consumption~250W
ConnectorHDMI, S/PDIF, AUX
Environmental conditionsTemperature: 0โ„ƒ ~ 40โ„ƒ (32โ„‰ ~ 104โ„‰)
Humidity: 20% to 80%, non-condensing
BlockSize4*2 block: 280x140x140mm / 2*2 block: 140x140x140mm
Weight4*2 block: 700g / 2*2 block: 400g
TextureABS

Recommended Installation specifications

 ExerBrain can be flexibly installed in various spaces, and we recommend configuring the area to accommodate up to four participants plus waiting users

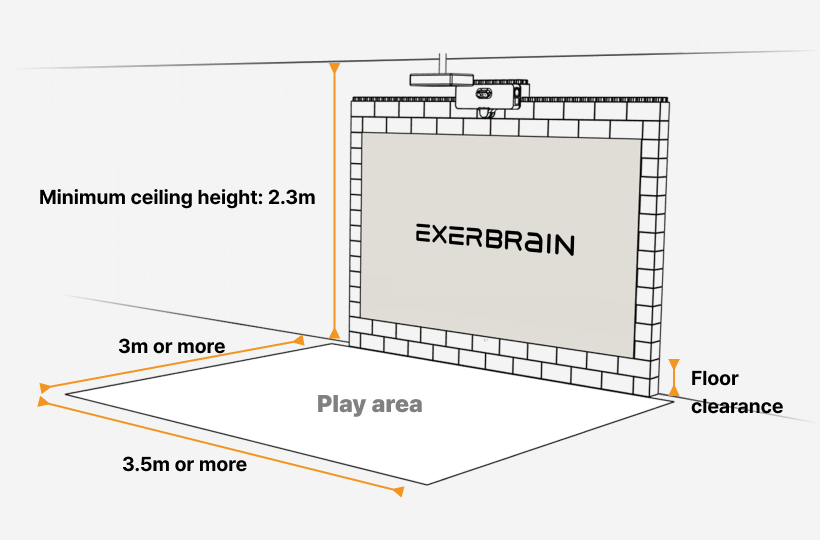

Things to check before installation

  • Minimum ceiling height: 2.3m
  • Screen Space: Width 3.5m or more / Front spacing 3m or more
  • Recommended: adjustable lighting environment.
  • Wi-Fi recommended (For auto-updates & report integration)
CategoryScreen sizeCeiling height
Floor clearance
A-1125 inches (2,800 x 1,540mm)2,300mm ~1st (140mm)
A-22,400mm ~2nd (280mm)
B140 inches (3,080 x 1,680mm)2,500mm ~2nd (280mm)
C150 inches (3,360 x 1,820mm)2,700mm ~2nd (280mm)


 Seismic Verification Completed

 Innovative block screen wall, A solution designed with the flexibility and stability required for seismic-resistant construction.

Seismic performance verified by Prof. Tae-Hyung Lee(Ph.D., UC Berkeley), Department of Civil Engineering, Konkuk University

  • Block wall with proven seismic resilience and joint strength
  • Light, stable structure with strong response to minor deformations

  • Proven excellent seismic performance under specified load conditions

  • Seismic wall solution suitable for earthquake-prone areas

 The process from installation to training is as follows.

 From start to finish, Exerbrain is by your side.

  • ๐Ÿ’ฌ Consultation Request
  • ๐Ÿข Preliminary Site visit
  • ๐Ÿค Contract Signing
  • ๐Ÿ“… Schedule consultation
  • ๐Ÿ› ๏ธ Installation
  • ๐ŸŽ“ Operator training
  • Site check within 1 week after consultation
  • Average installation time: 4 hours

Post-installation matters more

Reducing operator burden with continuous support for seniors’ lasting enjoyment.

  • Regular follow-up calls
  • Content update notification
  • Self-Maintenance Guide & Remote Support
  • Usage Monitoring and Diagnostic Report (Launching in ‘26)
